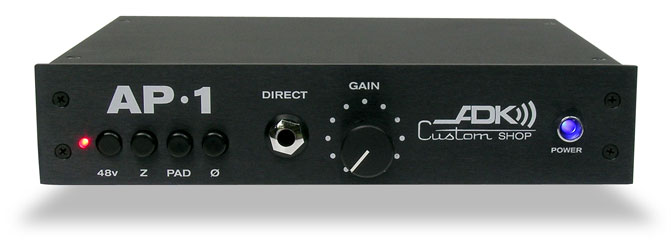

ADK AP-1 Mic Pre

The AP-1 is a top of the line Discrete Mic Pre that is designed for the most critical of applications.

$0.00

The AP-1 is a top of the line Discrete Mic Pre that is designed for the most critical of applications.
It features a discrete operational amplifier, a linear toroidal power supply and transformer balanced in and outs.
You can swap input transformers on daughter boards and op amps for a wide tonal “palette”.
Features Neutrik Gold contact XLR connectors, a wide gain control from 25 to 65db.
Phase reversal switch is available, a 20db pad and 48v phantom power.
Line level input available for use as an awesome direct box.
Proudly made in the USA!

Technical Specifications:

Input Impedance: 1.5k ohm
Gain Range: 25 – 65 dB
Noise: -125dB
Output Impedance: 75 ohms
Frequency Response: 20Hz – 20kHz
Max Output Level: +30dB
Input Connectors: XLR (Balanced), 1/4” (Unbalanced)
Output Connectors: XLR (Balanced Line)
Phantom Power: +48vdc

Dimensions: 8.5” x 1.75” x 7”
Weight: 3lbs.
