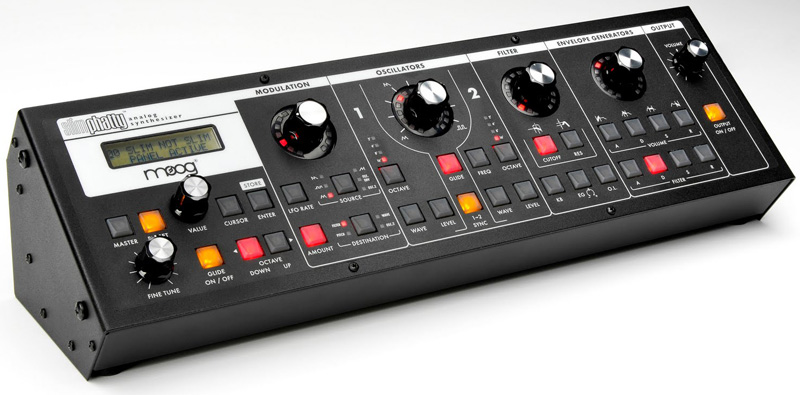

Moog Slim Phatty

Moog's latest descendant of the Minimoog Model D is the new Slim Phatty. The Slim Phatty is a monophonic analog synthesizer with 2 ultra-stable oscillators, two 4-stage analog envelope generators, a 24dB/Octave low pass filter and a flexible modulation matrix. 100 factory preset sounds built in Purchase this keyboard online now and get free shipping and double manufacturer's warranty!*

$0.00

Moog’s latest descendant of the Minimoog Model D is the new Slim Phatty.

The Slim Phatty is a monophonic analog synthesizer with 2 ultra-stable oscillators, two 4-stage analog envelope generators, a 24dB/Octave low pass filter and a flexible modulation matrix.

100 factory preset sounds built in.

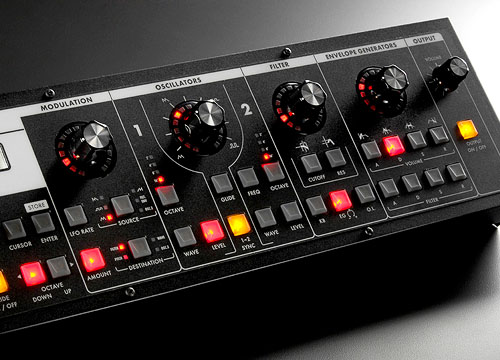

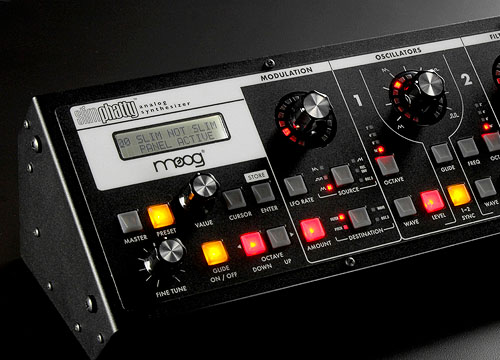

The Front Panel

  • LCD display and User Interface – provides controls to access the presets, the arpeggiator, and other software functions
  • Modulation section – features a programmable modulation matrix.
  • Oscillators section – features two analog oscillators, each with individual Octave, Level and Wave- form controls.
  • Filter section includes controls for adjusting Cutoff Frequency, Resonance, Keyboard Amount, Envelope Amount, and Overload. The output of the Filter is routed to the output Voltage Controlled Amplifier (VCA), Envelope Generator (EG) section – contains two ADSR-style envelopes, one for the Filter and one for the volume.
  • Output section – includes controls for adjusting the Master Volume, and a switch to toggle the audio output on and off

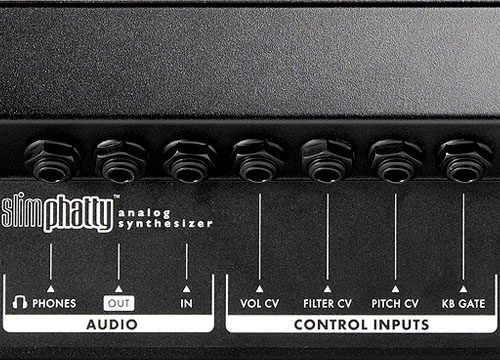

Rear Panel

  • MIDI USB
  • Audio jacks
  • Control Voltage jacks
  • MIDI
  • Power Socket and Switch



I/O

  • AC In
  • Power On/Off
  • Audio Out
  • Ext. Audio In: accepts +4dBu line level signal
  • Pitch CV In (1 V/Oct)
  • Filter CV In
  • Volume CV In
  • Keyboard Gate In
  • MIDI In
  • MIDI Out
  • MIDI Thru
  • USB: MIDI-over-USB
  • Headphone Out




Dimensions
17″W x 4 9/16″H x 5 5/16″D

Weight
5.75 Lbs

ProSound, Inc. is an authorized dealer for Moog Music.
