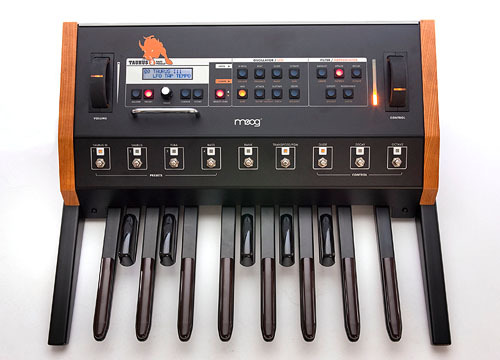

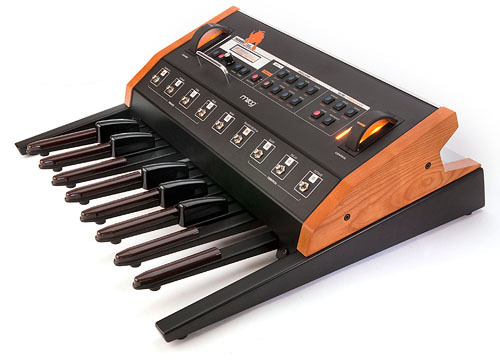

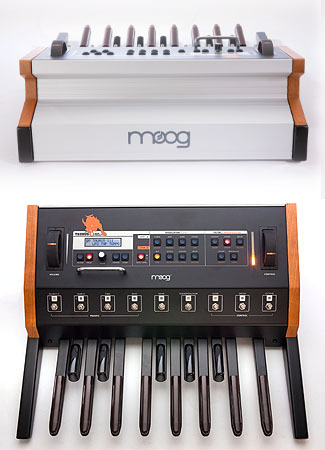

Moog Taurus 3 Bass Pedal

If you have heard of and seen bands like Rush, Led Zeppelin, The Police, Genesis, among others. Then you have seen and/or heard the Taurus pedal. Now Moog has for a limited time, reissued the Legendary Taurus Pedal in limited quantities. If you've ever considered buying a classic synth updated to the latest technology. NOW is the time!!

List Price: $1,995.00

ProSound Price: $1,795.00

You save $200.00 (10%)!

If you have heard of and seen bands like Rush, Led Zeppelin, The Police, Genesis, among others. Then you have seen and/or heard the Taurus pedal.
Now Moog has for a limited time, reissued the Legendary Taurus Pedal in limited quantities. If you’ve ever considered buying a classic synth updated to the latest technology. NOW is the time!!

Product Specifications

Performance Interface

  • 13-note velocity sensitive bass pedals
  • 1 Volume Footwheel Controller with optical mechanism
  • 1 Programmable Footwheel Controller with optical mechanism
  • 9 Footswitches for selecting Bank and Presets, Transpose, Glide On/Off, Decay On/Off, and Octave Up/Down

Synthesizer Sound Engine

  • 100% Analog Audio signal path based entirely on the highly acclaimed Taurus I synthesizer circuits
  • 2 x VCOs (Voltage Controlled Oscillators) with sawtooth waveform outputs
  • 1 x VCF (Voltage Controlled Filter) with 24dB/Octave Lowpass Filter with the classic Moog Ladder Filter topology. 20Hz-20KHz Frequency Response
  • 1 x VCA (Voltage Controlled Amplifier)

Synthesizer Modifiers

  • 1 ASD (Attack-Sustain-Decay) VCA Envelope
  • 1 AD (Attack-Sustain-Decay) VCF Envelope
  • 1 x LFO (Low Frequency Oscillator) with Triangle, Square, Sawtooth, and Ramp waveforms with adjustable amounts to the VCOs and VCF. The LFO is syncable to MIDI Clock or Tap Tempo
  • 1 x Arpeggiator with Latch Mode for generating recurring musical patterns from Bass Pedal Input. The Arpeggiator is syncable to MIDI Clock or Tap Tempo

Programming Interface

  • 52 Presets total in non-volatile memory consisting of one bank of 4 factory presets, and 12 banks of 4 user-programmable presets
  • Preset selection can be performed with the Value knob, or the combination of Bank footswitch, Bass Pedal, and Preset footswitch
  • Factory Presets include the classic Taurus, Bass, and Tuba presets, plus the new Taurus III preset
  • Two selectable levels of LED illuminated switches access the classic Taurus parameters or the Taurus 3 LFO and Arpeggiator parameters for editing with the Control Footwheel or the Value Knob
  • 15-segment LED bargraph displays the value of the currently selected parameter

Classic Taurus Parameters in the OSCILLATOR section

  • B.FREQ: Oscillator B Frequency coarse offset to Oscillator A
  • BEAT: Oscillator B Frequency fine offset to Oscillator A
  • GLIDE: Glide Rate
  • OCTAVE: Low, Medium or High
  • MIX: sets the loudness ratio between Oscillators A and B
  • ATTACK: sets the Rise time for the VCA Envelope Generator when a note is played
  • SUSTAIN: sets the maximum level for the VCA Envelope Generator when a note is held
  • DECAY: sets the fall time for the VCA Envelope Generator when a note is released

Classic Taurus Parameters in the FILTER section

  • CUTOFF: sets the lowpass filter cutoff frequency
  • RESONANCE: sets the amount of signal fed from the output to the input of the lowpass filter. Can be set for filter self-oscillation
  • ATTACK: sets the Rise time for the VCF Envelope Generator when a note is played
  • DECAY: sets the fall time for the VCF Envelope Generator when a note is released
  • AMOUNT: sets how much the VCF cutoff frequency is modified by the VCF Envelope Generator signal

Taurus 3 Parameters in the LFO Section

  • SQUARE: Radio button type switch selects the LFO square waveform
  • TRIANGLE: Radio button type switch selects the LFO triangle waveform
  • RAMP: Radio button type switch selects the LFO ramp waveform
  • SAW: Radio button type switch selects the LFO sawtooth waveform
  • RATE: sets the LFO Rate
  • LFO FILTER AMOUNT: sets the amount the LFO modulates the filter cutoff frequency
  • LFO PITCH AMOUNT: sets the amount the LFO modulates the VCOs frequencies
  • LFO SYNC: On/Off switch enables starting the LFO waveform cycle with each note played on the Bass Pedals

Taurus 3 Parameters in the ARPEGGIATOR Section

  • PATTERN: sets the pattern of the arpeggiator
  • ORDER: sets the order that the pattern of the arpeggiator is output
  • OCTAVE: sets the number of octaves for the arpeggiator pattern
  • ON/OFF: turns the arpeggiator on or off
  • LATCH: turns the arpeggiator latch function on or off
  • VALUE knob is used for selecting presets or editing parameters
  • PRESET switch toggles between the current stored preset and its edited form
  • MASTER switch selects a menu of Advanced Preset functions, Global settings, and System Utilities
  • CURSOR switch navigates the screen of the LCD User Interface
  • STORE switch initiates the storing of presets
  • Field-upgradeable firmware using MIDI SysEx

MIDI Implementation

  • Presets selectable by MIDI Program Change messages
  • Taurus Sound engine can be played by MIDI Note messages
  • Preset parameters controllable by MIDI Control Change (CC) messages
  • Bass pedals transmit MIDI Note On/Note Off messages with user selectable velocity resolution
  • Volume Footwheel transmits MIDI CC 7 (Volume) data
  • Control Footwheel transmits MIDI CC corresponding to selected parameter
  • Presets and Global Settings can be sent or received through MIDI SysEx

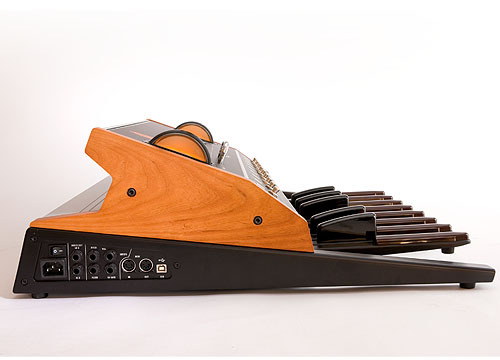

I/O panel

  • HI-Z Output: 1/4″ output jack outputs the Taurus audio signal from the classic higher impedance Taurus output stage. For use with Bass Amplifier instrument inputs
  • LO-Z Output: 1/4″output jack outputs the Taurus audio signal from a low impedance output stage. For use with line-level inputs
  • PITCH CV Input: 1/4″  TRS jack accepts expression pedal (such as Moog EP-2) or 0V to +5V Control Voltage inputs for modifying the VCOs frequencies
  • FILTER CV Input: 1/4″
    TRS jack accepts expression pedal (such as Moog EP-2) or 0V to +5V Control Voltage inputs for modifying the VCF cutoff frequency
  • VOLUME CV Input: 1/4″
    TRS jack accepts expression pedal (such as Moog EP-2) or 0V to +5V Control Voltage inputs for modifying the VCA gain
  • GATE Input: 1/4″
    input jack accepts +5V gate signal for triggering the Taurus EGs
  • MIDI In: standard DIN MIDI input connector
  • MIDI Out: standard DIN MIDI output connector
  • USB: bi-directional USB MIDI port
  • Power Inlet: IEC connector accepts 90-250V AC 50-60 Hz
  • Power Switch: turns unit On or Off

Chassis Specifications

Rugged metal enclosure with steel feet, front panel, structural panels and extruded aluminum back panel

Weight: 45lbs

Dimensions: 25″ wide X 24″ deep X 8 1/2″ high
