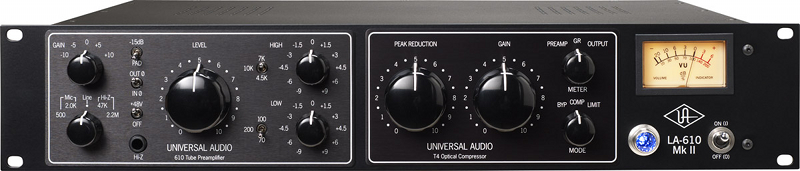

Universal Audio LA610MKII

Vintage All tube Mic Preamp designed derived by Bill Putnam combined with Teletronix LA-2A style T4 opto-compression. Based on the console modules designed in the '60s by Bill Putnam that have been used by many classic artists like Sinatra, Beach Boys and Van Halen to name a few.

$0.00

Classic Tube Mic Preamp Recording Channel

Vintage All tube Mic Preamp designed derived by Bill Putnam combined with Teletronix LA-2A style T4 opto-compression.
Based on the console modules designed in the ’60s by Bill Putnam that have been used by many classic artists like Sinatra, Beach Boys and Van Halen to name a few.

Features include:
All tube mic design
Teletronix LA-2A Style T4 Opto Compression
Mic Pre with Gain and Level Controls, Impedance Switching. Instrument Direct Inject.
High and Low Shelving EQ
*(High EQ 4.5, 7, 10 kHz)
*(Low EQ 70, 100, 200 Hz)
Compression Section True Bypass
Large Metering

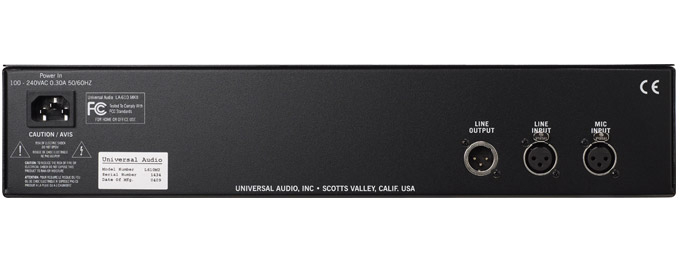

Mic, Line and HI-Z Inputs
5 Position Stepped Preamp Input Gain-
-15dB Pad Switch
48V Phantom Power
Phase Reverse
Custom Altran and Cinemag Transformers.

Hand assembled in the USA

SPECIFICATIONS:

Microphone Input Impedance Selectable, 500 Ω (ohms) or 2k Ω
Balanced Line Input Impedance 20k Ω
Hi-Z Input Impedance Selectable between2.2MΩ or47kΩ
Maximum Microphone Input Level -8 dBu (2k input impedance and 15 dB Pad in)
Maximum Output Level +23 dBu (120 VAC line)
Internal Output Impedance 80 Ω
Recommended Minimum Load 600 Ω
Frequency Response 20 Hz to 20 kHz +0.5 dB
Maximum Gain 40 dB (Line), +77dB (Mic)
Noise Floor -72 dBu, 20 Hz – 20kHz (Line in, unity gain)
Compressor Ratio ~3:1, soft knee, program dependent
Limiter Ratio ~∞:1, soft knee, program dependent
Attack Time ~10 ms, program dependent
Release Time Dual stage: ~60 ms for 50% release, then 1 – 15 seconds, program dependent

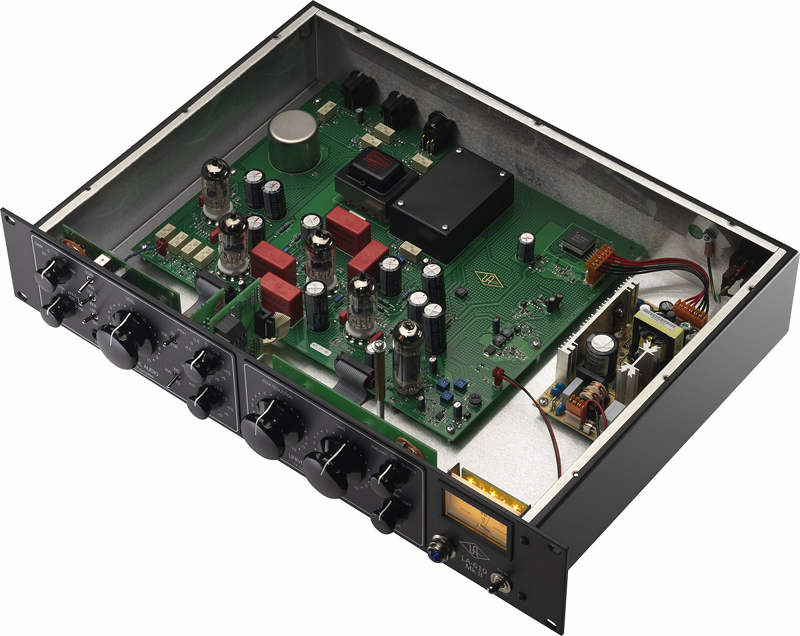

Tube Complement (3) 12AX7, (1) 12AT7, (1) EL84
Power Requirements 100V / 120V / 240V
Power Consumption ~ 30 watts
Power Connector Detachable IEC power cable
Dimensions 19″ W x 3.5″ H x 12.25″ D (two rack spaces)
Weight 12 lb.
