Moog Voyager XL

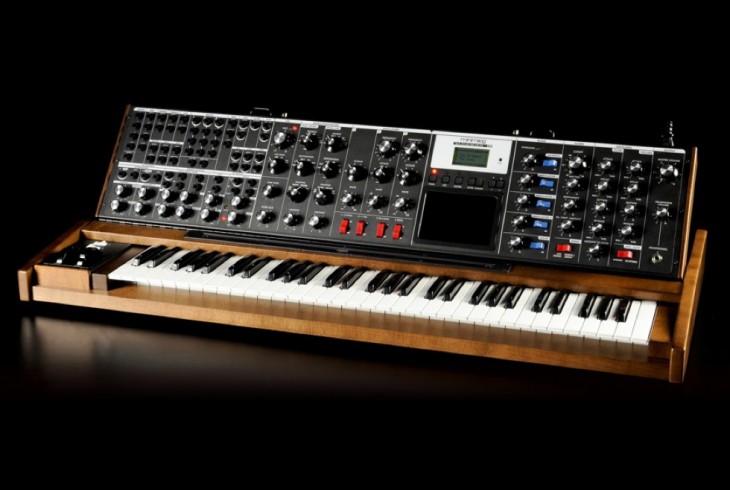

The MINIMOOG VOYAGER XL Synthesizer is a monophonic analog performance and production synthesizer. Based on the Minimoog Voyager sound engine, it incorporates virtually all of the sound resources and functions of the original Minimoog Model D and Voyager, with the addition of a number of exciting features from Moog's modular synthesizer legacy.

$0.00

The MINIMOOG VOYAGER XL Synthesizer is a monophonic analog performance and production synthesizer. Based on the Minimoog Voyager sound engine, it incorporates virtually all of the sound resources and functions of the original Minimoog Model D and Voyager, with the addition of a number of exciting features from Moog’s modular synthesizer legacy.

Type:
Programmable monophonic analog synthesizer

Sound Generation:
3 Oscillators with continuously variable wave- form control, 1 Noise source, 5-input Mixer, 2 Filters, 2 Envelope Generators, 1 LFO, 2 Programmable Modulation Sections, Glide and FineTune controls

Program Memory:
1024 Presets in 8 Banks; 896 locations are user rewritable

Keyboard:
61 keys (C-C) Transmits polyphonic MIDI Note On/Off
messages along with velocity and aftertouch

Performance Controls:
Pitch Wheel: programmable, up to ± 31 semitones (2 octaves and a 5th)

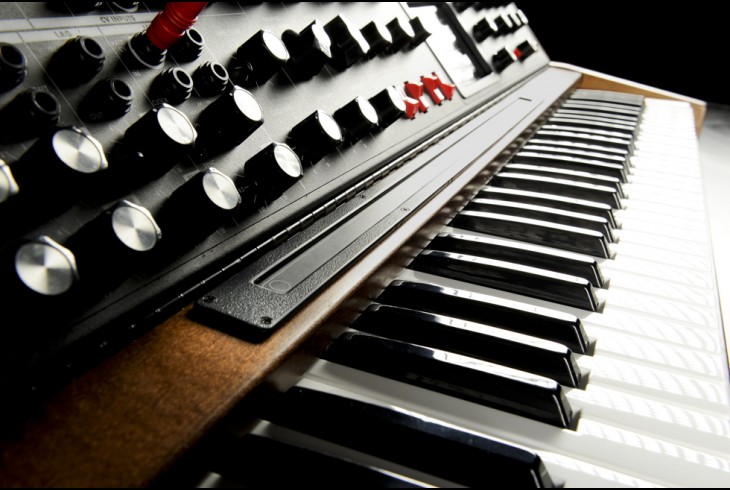

Modulation Wheel: 0 to 100% Glide and Release Switches: On/Off Ribbon Controller: single axis controller that
generates CV and Gate control signals based on the position of the player’s finger.
Touch Surface: programmable, three dimen- sional surface that generates contin- ously variable control signals based on the posiition of the player’s finger and the amount of contact area the finger makes with the surface.
Master Volume Control: 0 to 100%

User Interface:
Mode Controls: Preset, Edit and Master function buttons
Selection/Navigation Controls: Cursor, Enter, and -1/+1 buttons

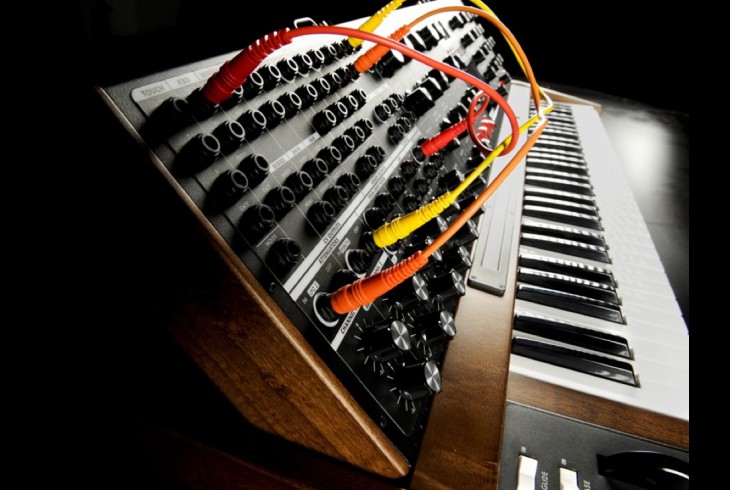

Modular Patch Panel:
Pedal/Control Jacks (14 inputs for external control of various CV and Gate
functions, 23 CV and Gate outputs) (2) Bi-Directional Attentuators with OFFSET Four-Input Mixer section with OFFSET and
MASTER Attenuator LAG Processor (1msec to 1sec)
A Six-waveform, 2 Output LFO processor with MIDI SYNC and External Clock
capabilities

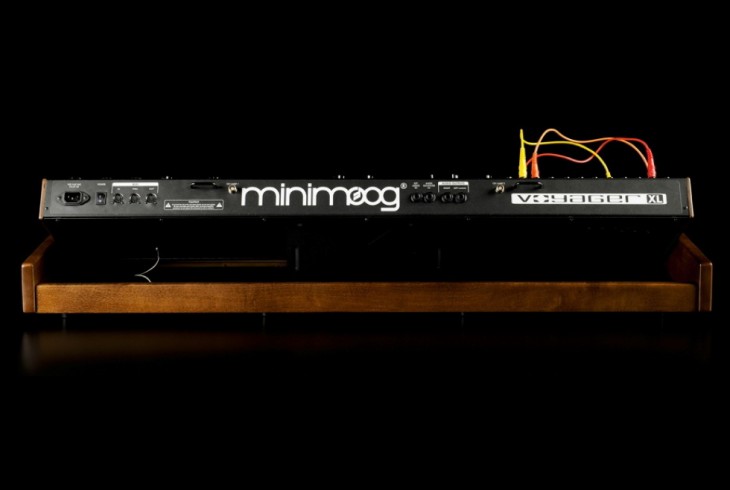

Back Panel:
AC Power Inlet (universal power supply, 100-250 VAC, 50-60 Hz)
Power ON/OFF switch Stereo Audio Output jacks
(unbalanced outputs) External Audio In jack
Mixer Out/Filter In jack (2) TNC Lamp Sockets: supplies 12V 0.5A
(5W bulb maximum) per connector MIDI In, Out and Thru connections

Outputs:
Stereo Audio Output: Two 1⁄4” jacks on back panel
Headphone Output: 1⁄4” TRS jack on front panel with a dedicated Volume control.

Dimensions:
41.25”W x 18” D x 3” H (panel flat) 41.25” W x 18” D x 12” H (panel upright)

Weight:
49lbs (22.2 kg)
